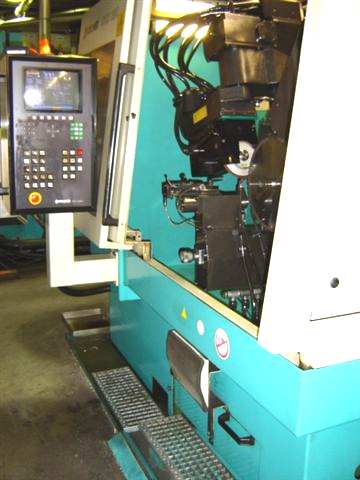

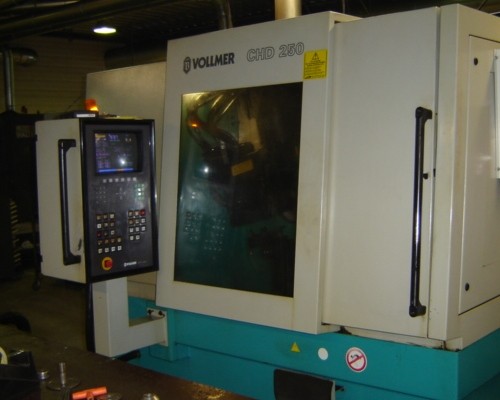

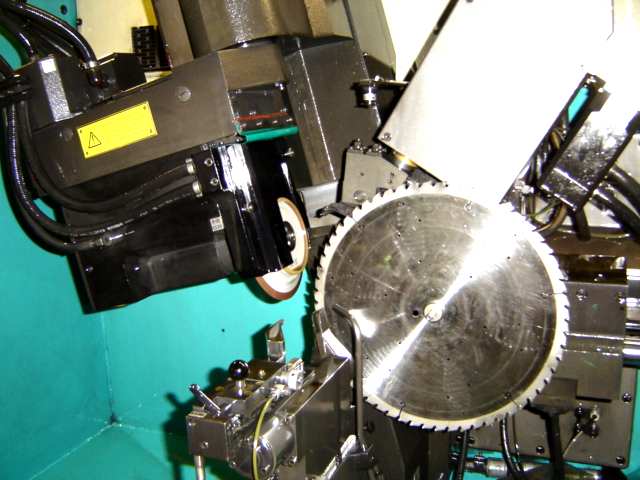

Ideal for automatic top and face grinding of TCT circular saw blades in one setup.
Condition: Technically overhault, new paintjob.
| Производитель: Vollmer |
| Модель: CHD 250 |
| диаметр / дисковых пилы: 80 bis 840 mm |
| толщина / дисковых пилы: bis 14 mm |
| диаметр отверстия: 10 bis 220 mm |
| pitch: 8 bis 120 mm |
| cutting angle: - 35 bis + 40 ° |
| clearance angle: 5 bis 45 ° |
| Размеры BxTxH: 2295 x 1743 x 2050 cm |
| Вес: 2000 kg |
Accessories and Equipment
|
|
Bevel angle at the tooth top: 45º
Bevel angle at the tooth face: 30º Grinding wheel ? Ø face: 200 x 32mm Grinding wheel ? Ø top: 125 x 32mm The machine has been checked by us, as well as the Geometrie was controlled and can be seen and tested under power in our stock. |
Errors and omissions excepted.
